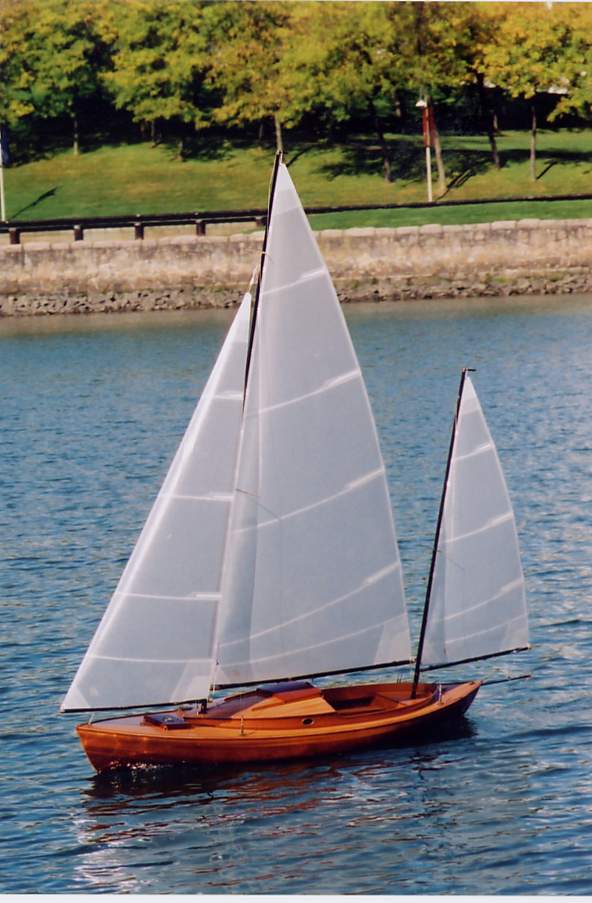

Herreshoff design "Rozinante"

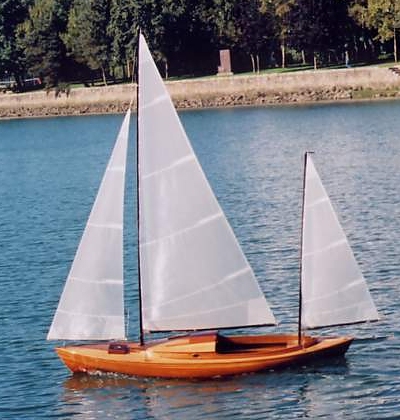

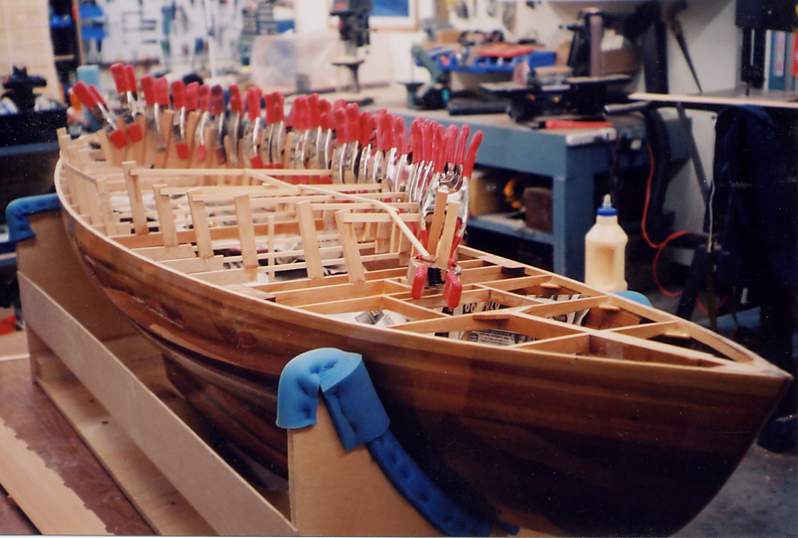

more photos of the Rozinante, and photos of
the contruction of the Rozinante below.
"Rozinante" was designed by L. Francis Herreshoff
in 1956.
The original's specifications are:
Canoe yawl
LOA 28' 9"
Beam 7'
Draft 3' 9"
Sail area 342 square feet
The model is:
Scale: 1" - 5" approximately
LOA: 76"
Beam: 19"
Sail area: 2056 square inches
Displacement: 85 pounds including 65 pounds ballast.
Sails: Mylar
Spars and booms: Carbon fibre
Hull: Red Cedar-epoxy-fiberglass
Deck: Yellow cedar
Cabin: Mahogany, cedar, ash, cherry
Fittings: Hand made by Murray, except turnbuckles and blocks.
Sails: Bob Sterne
Finish: Brushed marine varnish and paint
Radio controls: Fully functional
Price: Sold!

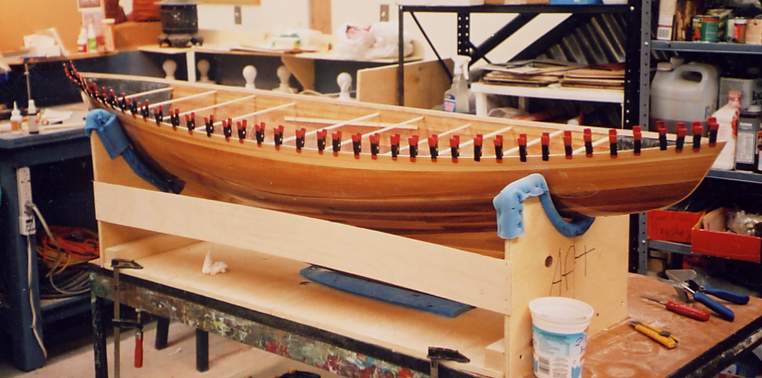

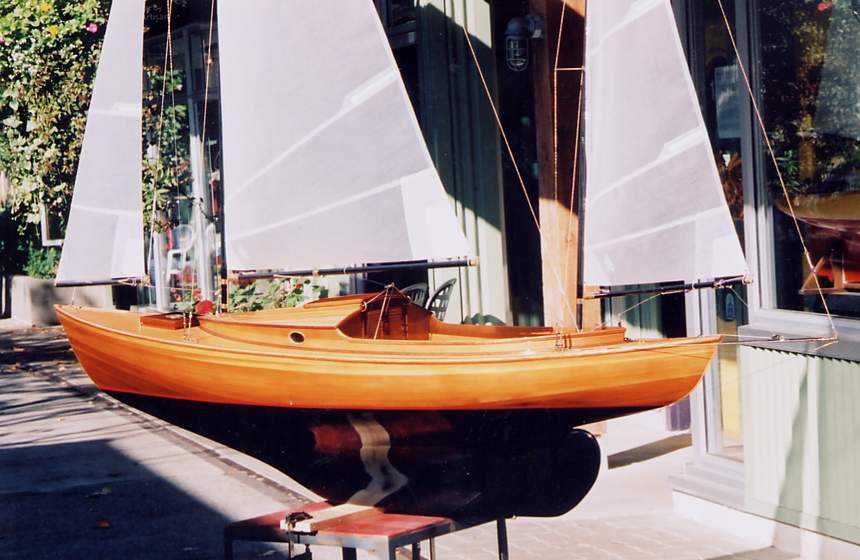

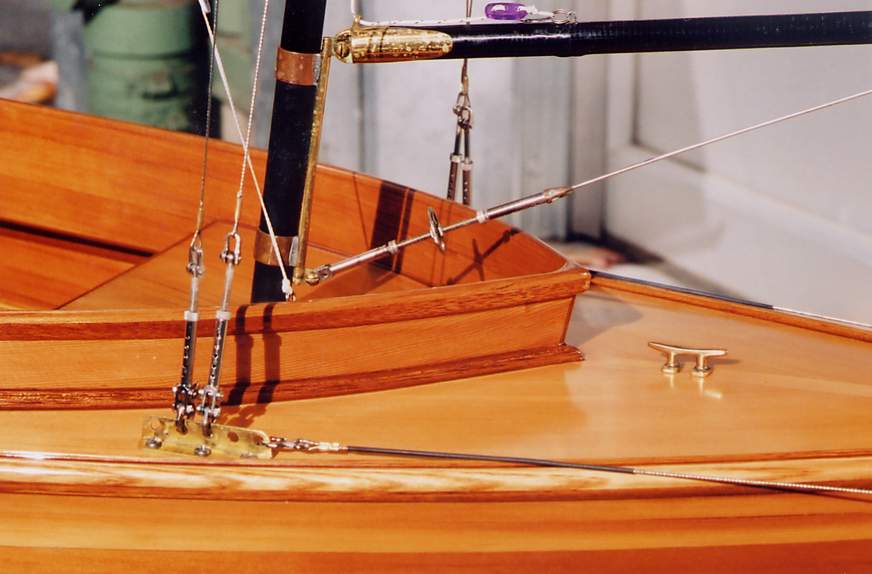

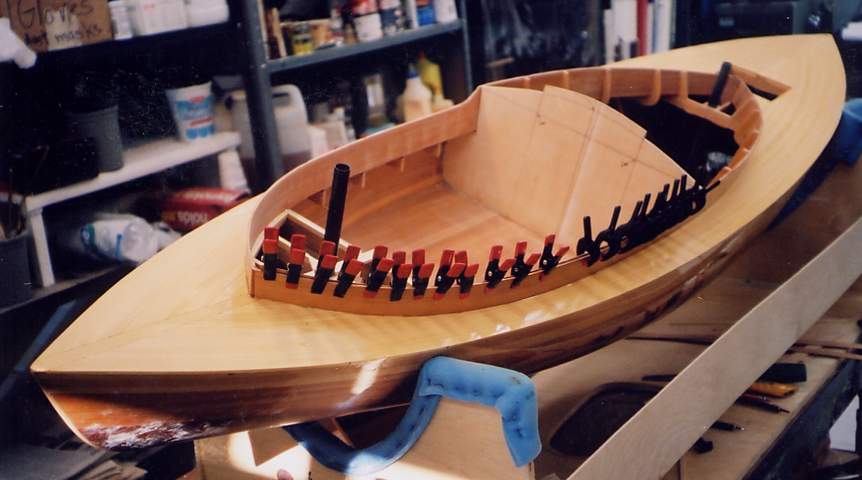

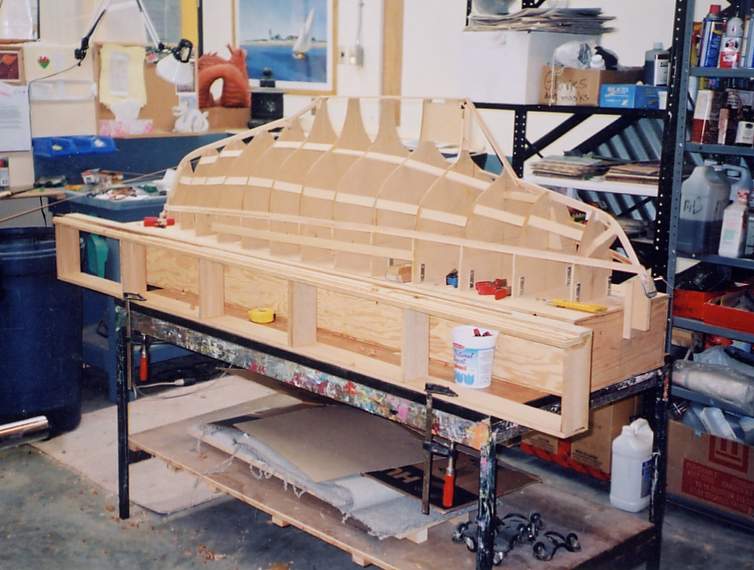

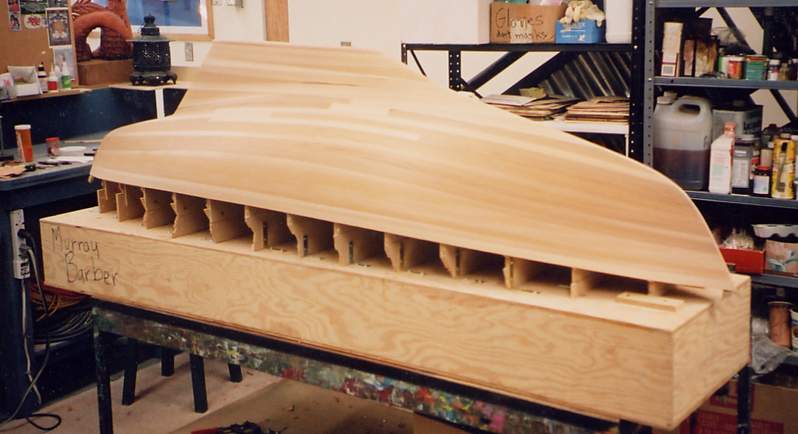

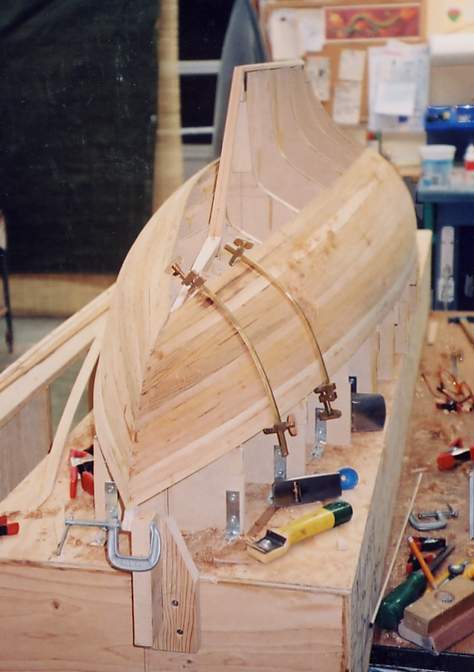

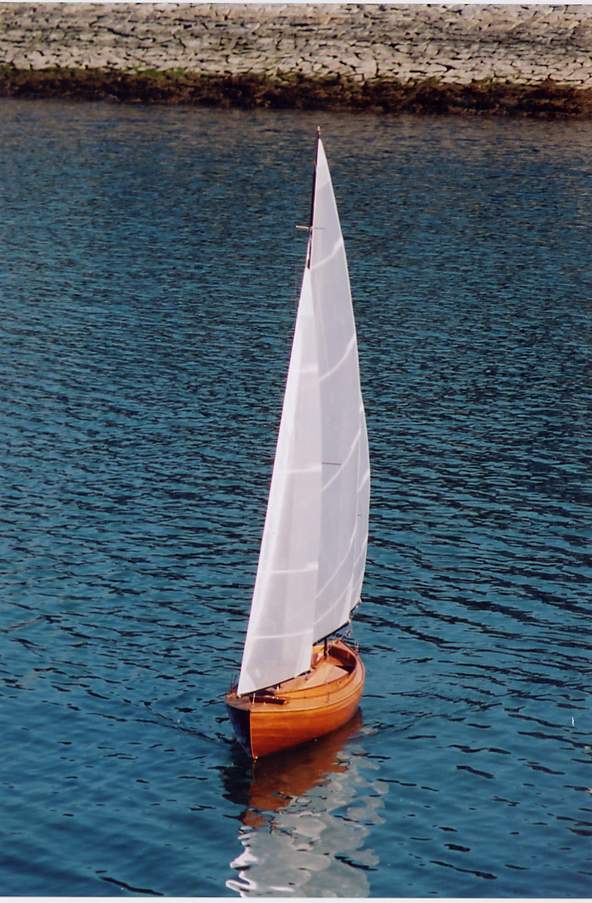

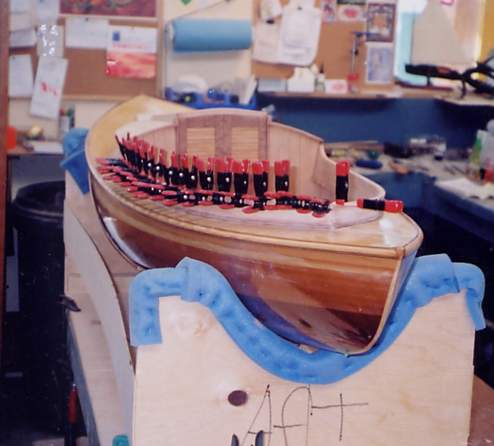

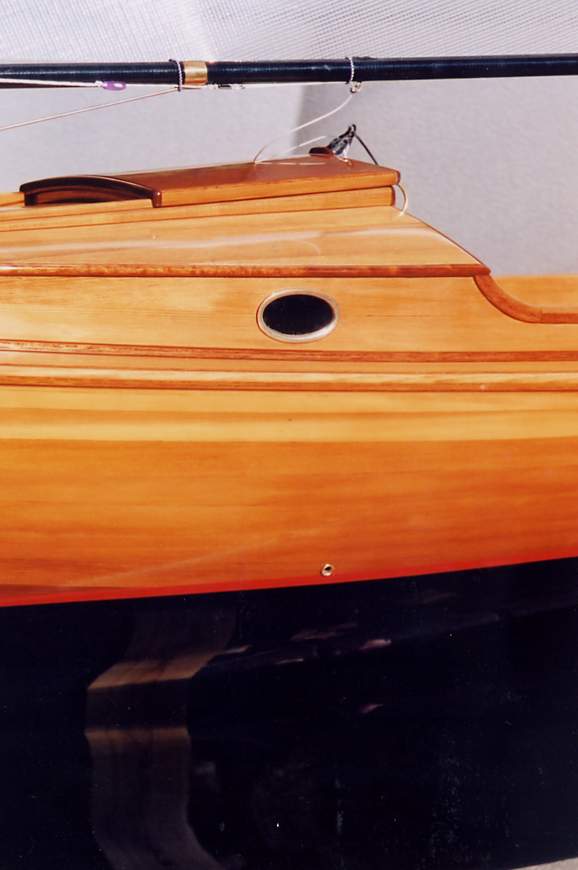

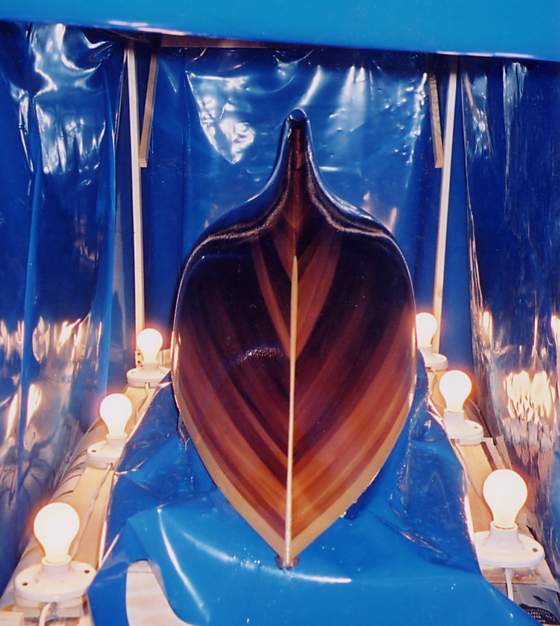

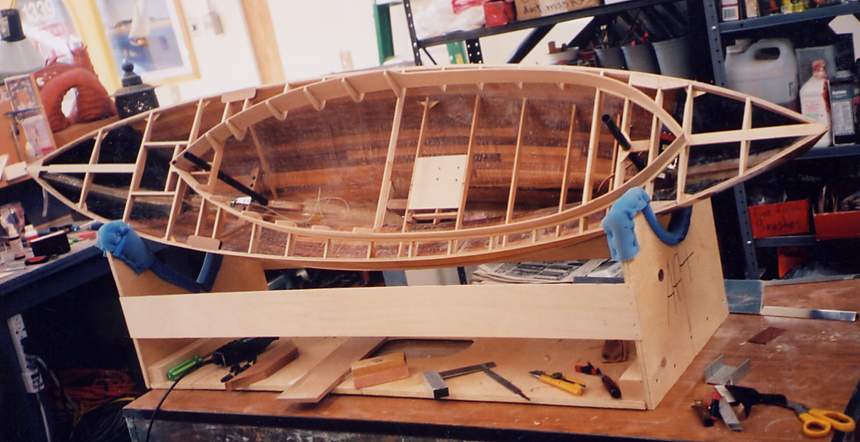

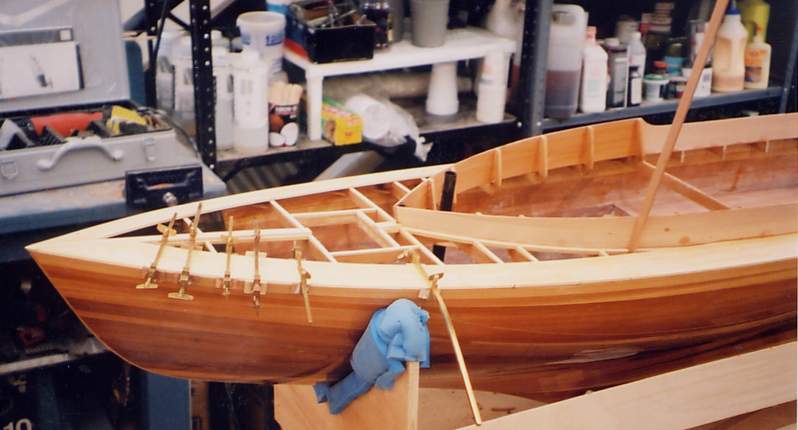

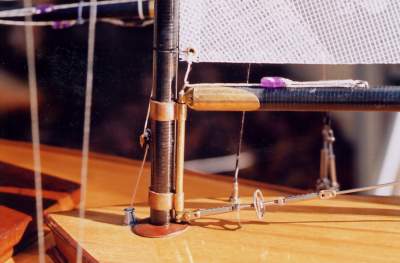

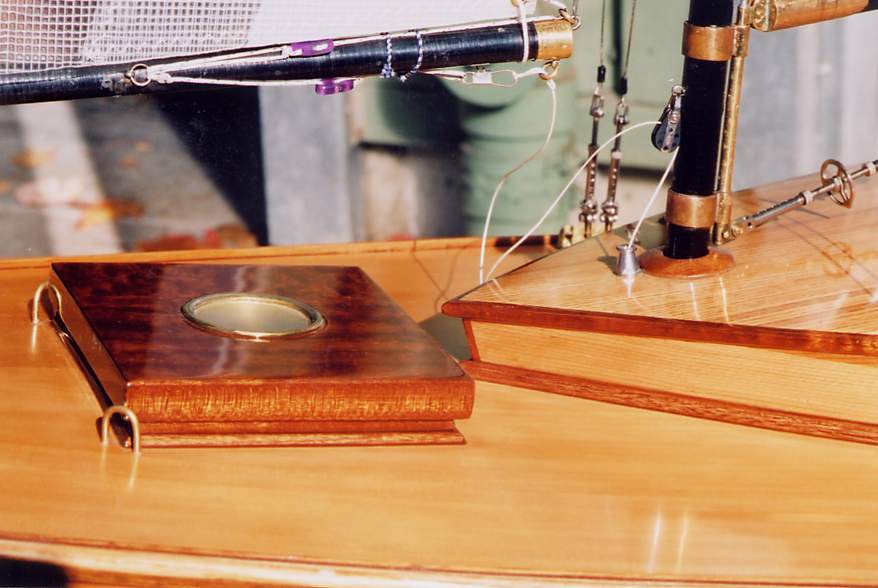

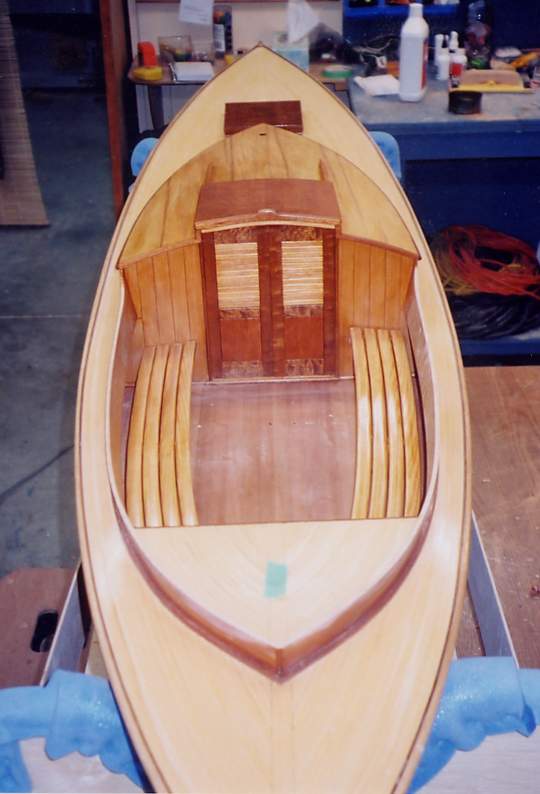

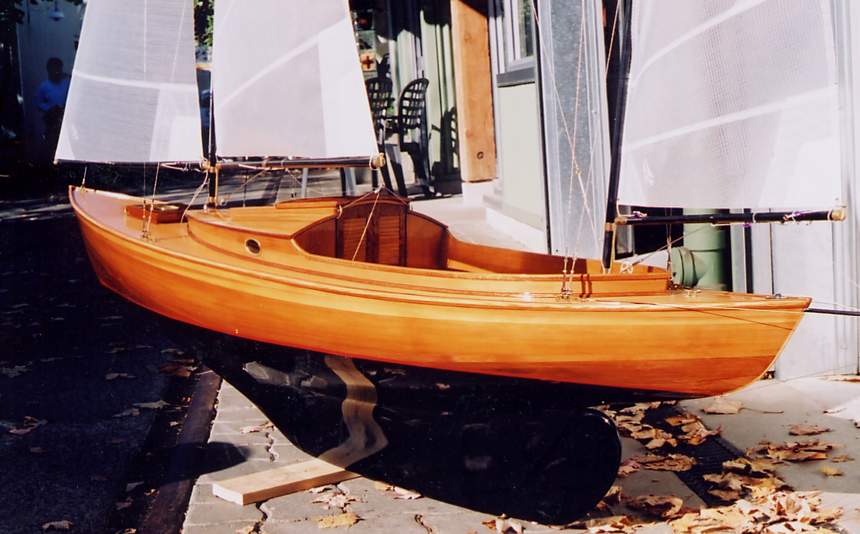

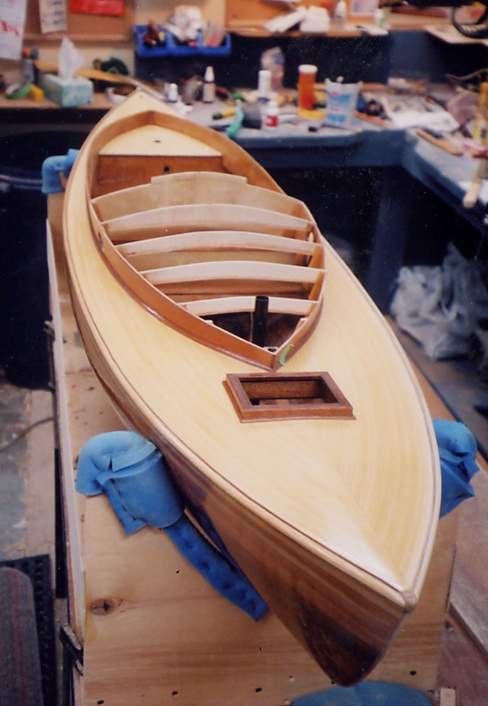

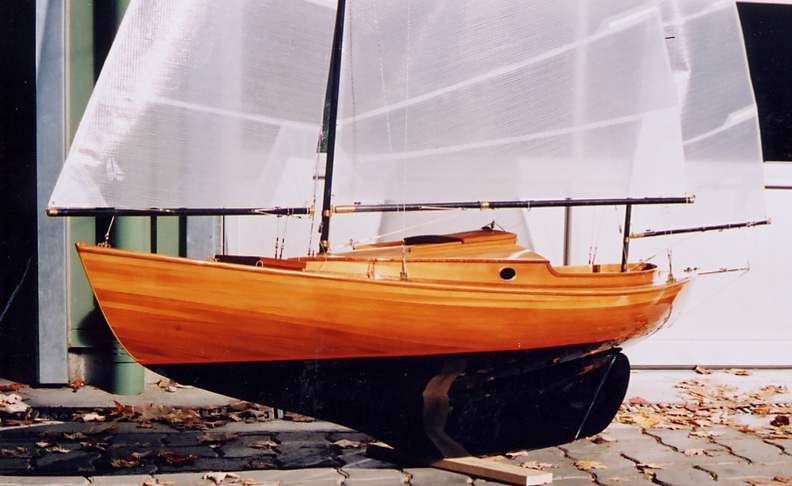

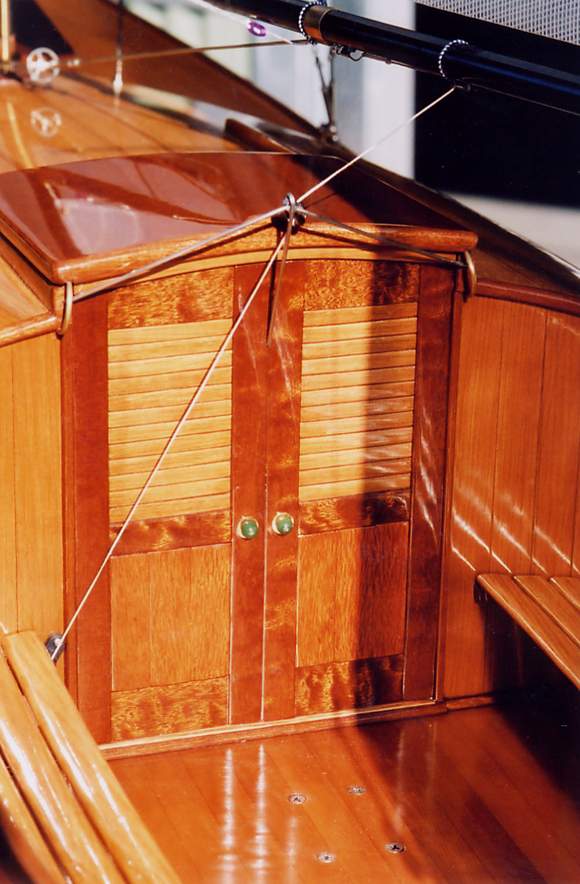

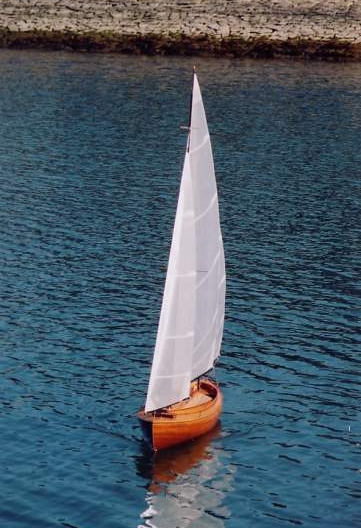

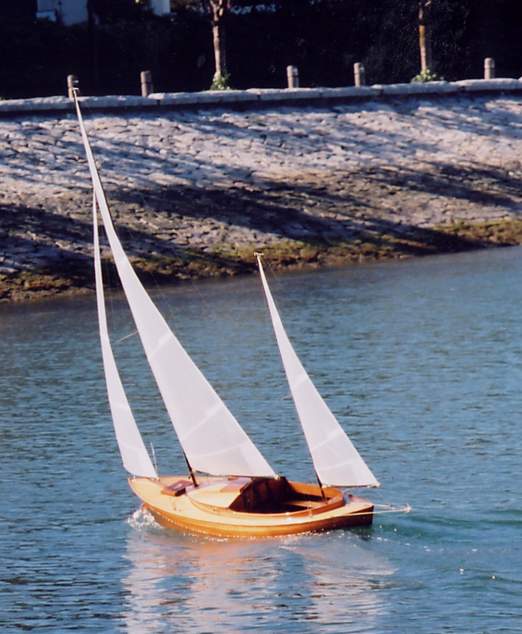

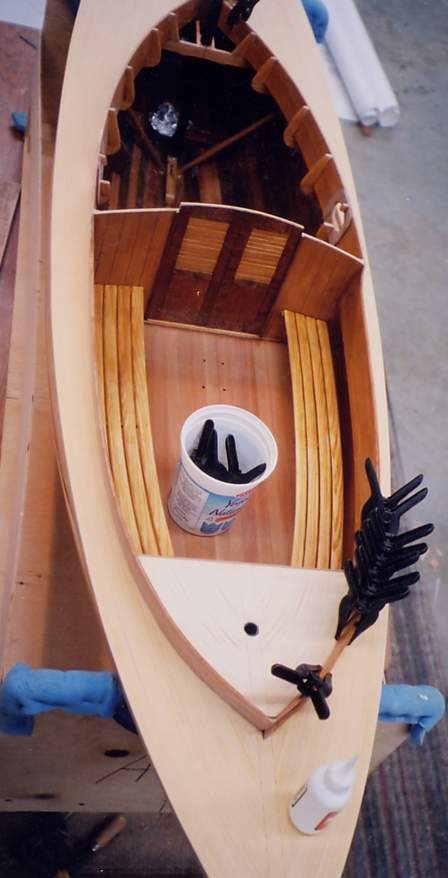

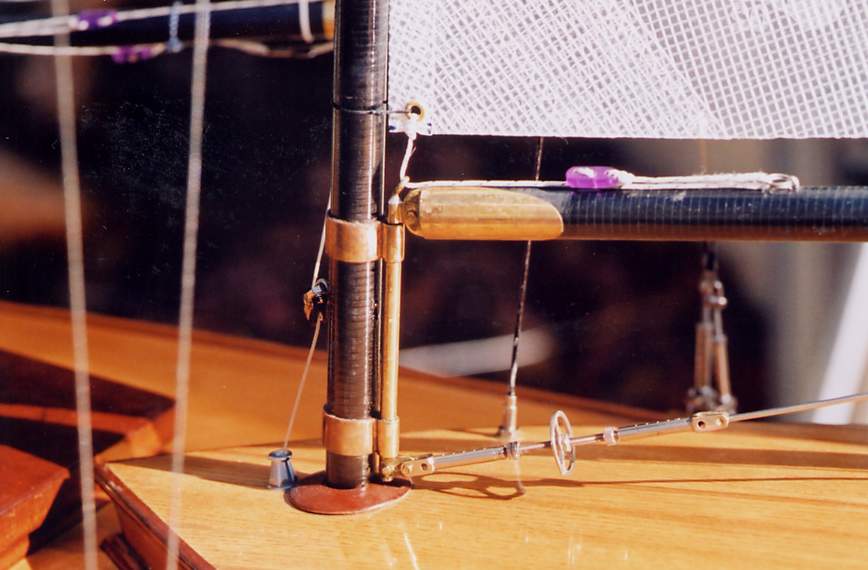

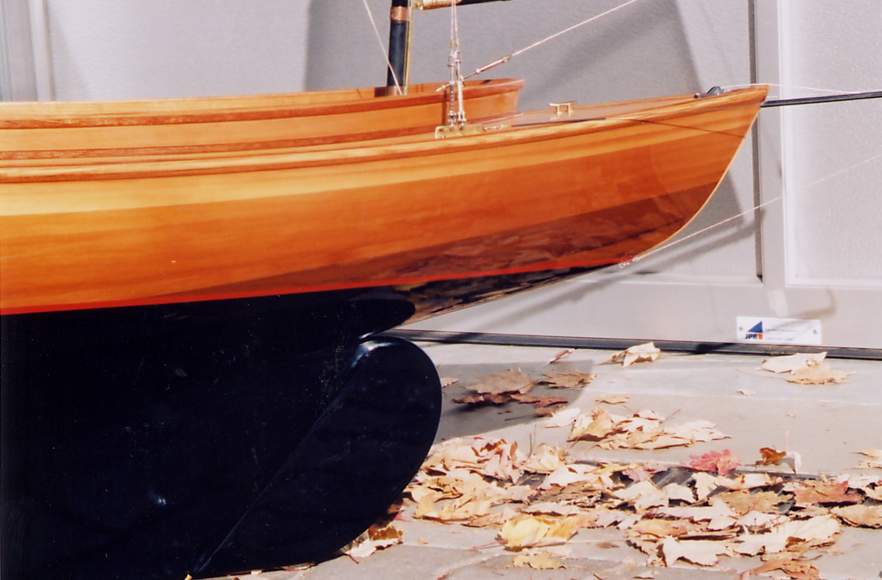

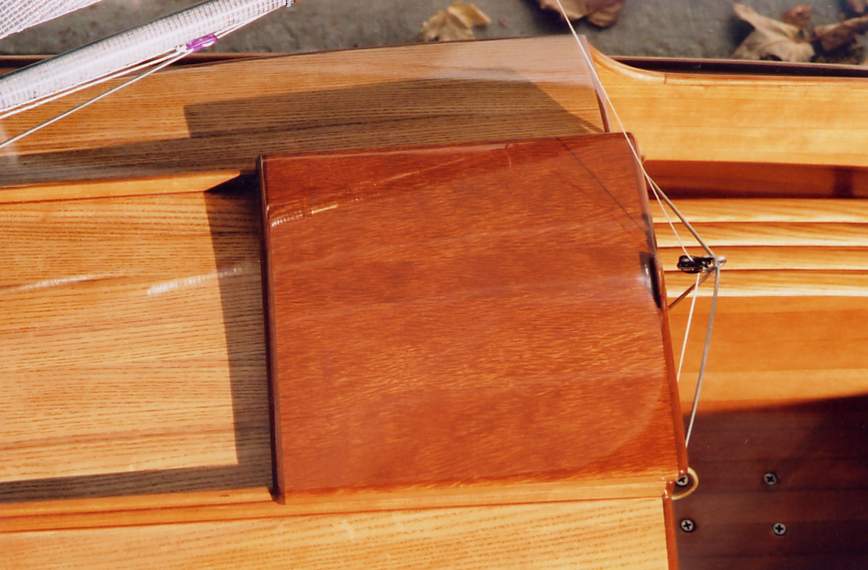

Detail photos of the model and it's construction below. Click on any picture
for a larger version of the photo.
|
